[Spce-user] How to setup subscriber as SIP Trunk

[Edo]

Thanks for the advice.

I will try that and update the thread.

Thanks again

On Mon, Sep 30, 2024 at 11:42 AM Walter Klomp <walter at myrepublic.net> wrote:

> There is no difference between a subscriber and a sip trunk.
>
> A sip trunk just has optional multiple numbers and more channels than a
> subscriber.
>
> I think you need to set e164 to ruri for the ddi to be sent to the sip
> trunk client.
>
> Obviously you also need to set the numbers in allowed ddi and the add the
> aliases.
>
> There will be only 1 authentication, which is typically the main sip trunk
> number. You can use ip authentication as well. But you have to create a
> static registration entry otherwise inbound calls to the sip trunk will not
> work. The PBX connected to the sip trunk doesn’t need to authenticate in
> this case.
>
> Note the users will connect to the PBX and NOT Sipwise in this case.
>
> [image: Signature header]
> [image: Signature image]
> Walter Klomp
> Head of Voice Network
> [image: Email] walter at myrepublic.net
> Beyond Work :
> 11 Lorong 3 Toa Payoh, #04-11/15, Jackson Square, Block B, Singapore 319579
> www.myrepublic.net
> * [image: Facebook-f] * <https://scribe-mail.myrepublic.net/s2/21iu7kgk> *
> [image: Instagram] * <https://scribe-mail.myrepublic.net/s2/kzqypegm> *
> [image: Twitter] * <https://scribe-mail.myrepublic.net/s2/geefi681> *
> [image: Linkedin-in] * <https://scribe-mail.myrepublic.net/s2/3bzu1nu9>
> The information in this message is privileged and confidential. If you are
> not the intended recipient of this email, please don't read, copy, use,
> distribute or tell anyone about it; kindly destroy it and notify the sender
> by return email. Please advise immediately if you or your employer does not
> consent to email for messages of this kind. Any content that is not
> concerned with MyRepublic business reflects the views of the sender only
> and not those of MyRepublic.
>
>
> On Mon, 30 Sep 2024 at 19:00, Edo <edo.ekunwe at gmail.com> wrote:
>
>> All I am looking for example configuration(s) of how to setup a
>> subscriber as a SIP trunk as mentioned below. I am really trying to handle
>> multiple users behind another IP PBX system with IP authentication

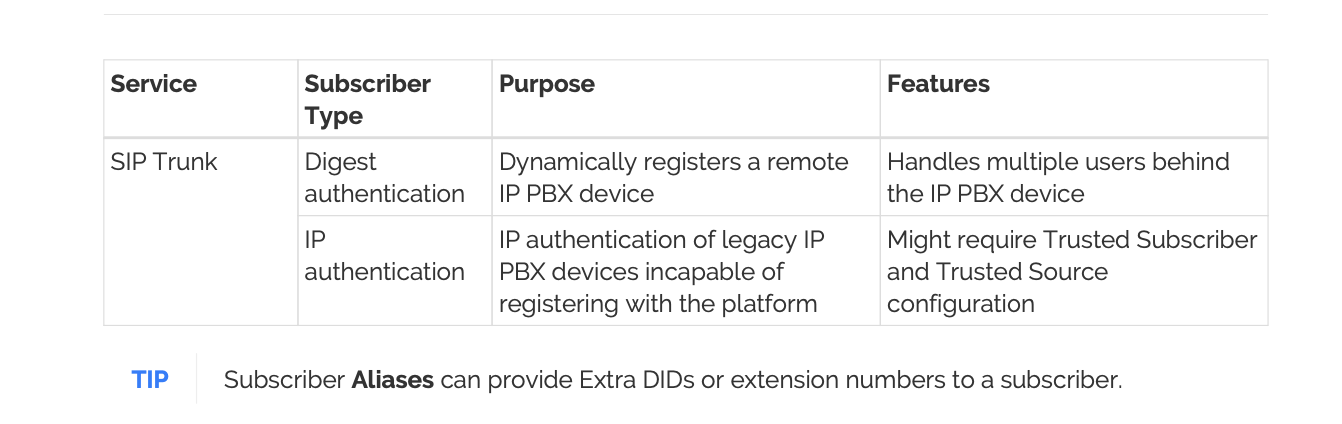

>> [image: image.png]
>> I looked at subscriber preferences but could not find any idea leading to
>> success.
>>
>> Please assist.
>>
>>
>> --
>> -----
>> Ekunwe
>> Tel: 601.497.3932
>> --
